Bronchioalveolar stem cells vindicated!

Introduction

Fourteen years ago, Kim et al. (1) reported the existence of bronchioalveolar stem cells (BASCs) in the lung. These cells expressed both secretoglobin family 1A member 1 (Scgb1a1) and surfactant protein c (Sftpc), the differentiation marker of club cells and alveolar epithelial type 2 cells, respectively. The recent lineage tracing of these cells from the Zhou lab using an elegant genetic approach to permanently express a fluorescent marker in these double positive cells, demonstrated that these cells are indeed capable of self-renewing and of differentiating into either bronchiolar or alveolar epithelial cells upon injury, in vivo (2). This work is a large step forward in the lung field, demonstrating the biological relevance of the BASCs in the context of regeneration. This work opens the way to elucidating the basic mechanisms controlling the proliferation and differentiation processes at work in BASCs during repair after injury. It will also facilitate a better appreciation of the importance of these cells compared to other epithelial stem cells in the distal lung, such as alveolar type 2 (AT2) cells, the variant of club cells, or the lineage negative epithelial progenitor cells (expressing α6β4 integrin).

BASCs are critical for both cancer and regeneration

In 2005, Kim et al. proposed that stem cells expressing both Scgb1a1 and Sftpc, located at the bronchioalveolar duct junction (BADJ) could give rise to adenocarcinomas (1). These stem cells can be enriched by FACS on the basis of Sftpc, Scgb1a1, Sca1, and CD34 expression (as well as negative for CD31 and CD45) and self-renewed as well as differentiated (into club and alveolar cells) in vitro. Expression of oncogenic protein K-ras in these cells drastically enhanced their proliferation (3). As BASCs display self-renewal capabilities, acquisition of deleterious mutations in these cells could lead to tumor formation. Therefore, it was proposed that these cells could give rise to cancer stem cells. Interestingly, these cells often retain the differentiation markers of the primary tumor. Now that the lineage tracing of these cells has been achieved, the impact of activating oncogenes in these cells should be easily investigated. It was also reported that both human and murine lung tumor cells, transferred via intratracheal injection into the lung, led to secondary tumors that grew selectively in the BADJ (4).

In the context of lung regeneration, two models were used in the Liu et al. study (2). First, a single naphthalene intraperitoneal injection was used to trigger the ablation of all club cells (expressing high levels of cytP450), except for the variant of club cells (which expresses low levels of cytP450), lining the bronchial surface and terminal bronchioles. These survival cells are located close to neuroendocrine cells, which are found mostly within the large proximal airways and are organized in clusters referred to as neuroendocrine bodies (5). Variant of club cells likely play a minor role in terminal bronchiole repair, due to the fact that the neuroendocrine bodies are quite rare in the distal lung. Interestingly, the existence of club cells which also expressed Sftpc in the BADJ was already reported in 2002 (6). These cells were resistant to naphthalene treatment and expanded after injury, suggesting that they could be progenitors for both alveolar and bronchiolar cells.

In the second model of lung injury, bleomycin intratracheal exposure targeted the alveolar epithelial cells. The alveolar epithelium is composed of alveolar type I (AT1) and II (AT2) cells. AT2 cells secrete surfactants critical for reducing alveolar surface tension, thereby preventing the collapse of alveoli, whereas the flattened AT1 cells are instrumental in facilitating gas exchange between the blood and the air inside the lung. Numerous stromal cells are also present in the lung, and these cells are likely to support the different epithelial stem cells described therein, including the BASCs.

Use of a dual-recombinase genetic model to target the BASCs

The Zhou lab made elegant use of the previously described inducible Dre-ERT2 and Cre-ERT2 recombinases to lineage-label the BASCs. For this purpose, they generated a new Sftpc-DreERT2 line, and a new knock-in reporter line. These tools enabled, after combined Cre (driven by the previously described Scgb1a1-CreERT2 mice) and Dre activity, to constitutively express, from the Rosa26 promoter, a fluorescent reporter.

Cre and FLP are two tyrosine site-specific recombinases (SSRs) commonly used to recombine genomic DNA in vivo, and have become essential tools for biological research. While there are many options available for Cre-mediated lineage analyses, fewer options exist which use FLP recombinase; whereas tools employing the other SSRs are relatively rare. A report from the Stewart lab demonstrated that a new recombinase, called Dre, specifically recognized rox sites (in the same way Cre recognizes loxP sites) (7). Another improvement occurred when the Dre was fused to the mutant estrogen receptor ERT2, allowing Dre regulation in a cell specific and temporal fashion (8).

The arsenal of SSRs is therefore expanding: first the Cre, then the FLP, and now the Dre as well as Vika. These recombinases recognize specific sites on the DNA (loxP, frt, rox, and vox, respectively) (Figure 1A). Interestingly, a polyvalent single reporter mouse line, which responds to the activity of each of these different recombinases, was recently reported, and will likely be instrumental as other mouse models are developed (9).

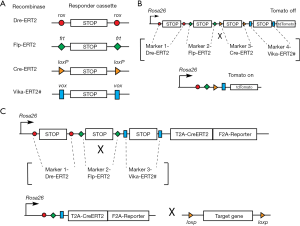

Figure 1 Multi-recombinase system to target and label specific cell types. (A) The currently available set of recombinases along with their recombination sites. Dre, Flp, and Cre have already been successfully fused with ERT2 to create inducible recombinases, whereas an inducible Vika has yet to be produced. (B) A hypothetical reporter knock-in in the Rosa26 locus. Only in cells expressing four markers, each of which drives one of the specific recombinases (Dre-ERT2, Flp-ERT2, Cre-ERT2, or Vika-ERT2), will the expression of tdTomato be reported after induction. This reporter knock-in could serve as a powerful tool for lineage tracing experiments. (C) A hypothetical recombinase knock-in in the Rosa26 locus. Only in cells expressing three markers, each of which drives a specific recombinase (Dre-ERT2, Flp-ERT2, or Vika-ERT2), will the expression of Cre-ERT2 and a reporter occur after induction. The Cre-ERT2 can then recombine target DNA of interest, functionally activating or removing genes in targeted cells. This system has the potential to target and label cells based on three markers in an inducible fashion. #, Vika-ERT2 has yet to be produced.

While it is a welcomed improvement to be able to label cells based on the expression of two markers, we potentially have a more powerful tool at our disposal to specifically label cells in vivo based on the expression of four markers. A new reporter line containing, for example, successive loxP-STOP-loxP, frt-STOP-frt, rox-STOP-rox, vox-STOP-vox cassettes proceeding a fluorescent marker could be generated (Figure 1B). For lineage tracing experiments, the fluorescent marker would be activated in only those very specific cells expressing the four recombinases. More importantly, powerful experimental models can be developed using multi-driver recombination to functionally activate or remove genes in targeted cells. As the majority of existing conditional alleles are mostly based on the Cre-loxP system, a superb approach would be to generate a Rosa26-based knock-in mouse with frt-STOP-frt, rox-STOP-rox, vox-STOP-vox cassettes preceding a CreERT2 and fluorescent reporter (Figure 1C). In this way, CreERT2, along with a reporter, would be expressed only when the three recombinases are present and have recombined their respective STOP cassettes. The CreERT2 could then be activated to induce DNA recombination (leading to gain or loss of function of a specific gene) in a given cell type. This technology, which is still in its infancy, is indeed very promising.

How similar are the BASCs to multipotent epithelial progenitor cells during early lung development?

Multipotent lung epithelial cells expressing Id2 and Sox9 give rise to alveolar and bronchiolar lineages (Figure 2A). We have recently found that these cells are dependent upon fibroblast growth factor 10 (Fgf10) for the maintenance of their differentiation along the alveolar lineage (10) (Figure 2B). Upon loss of Fgf10 signaling, these cells acquire Sox2 expression, a marker of the bronchiolar lineage. Now that a lineage tracing strategy of the BASCs has been established, it will be important to determine when, during embryonic development, these cells are emerging. For example, are these cells emerging from the Sox9 and Sftpc-positive alveolar progenitors which acquire, later on, Scgb1a1? Or are they emerging from the Sox2 and Scgb1a1-positive cells and later acquire Sftpc? Interestingly, we have previously demonstrated that in the adult lung, the BASCs are amplified when Fgf10 is overexpressed in the lung (11), suggesting that these cells could respond to Fgf signals [in line with this idea, Liu et al. show that Fgfr2 expression was upregulated in BASCs, based on the single-cell RNA sequencing (2)]. It remains to be shown whether BASCs specifically express the Fgfr2b isoform, the main Fgf10 receptor, which would suggest a direct effect of Fgfs on BASCs. Lineage tracing of these cells combined with single cell RNA-seq in the context of either naphthalene or bleomycin injury will be able to identify the different relevant pathways activated in these cells during the repair process.

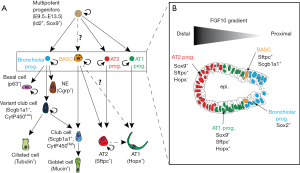

Figure 2 Lung epithelial lineage hierarchy and positioning of the corresponding epithelial stem cells along the distal-proximal axis (A) Lung epithelial lineage tree during organogenesis. Multipotent progenitors, positive for Id2 and Sox9 are capable of self-renewal and giving rise to bronchiolar and alveolar progenitors during early lung development (E9.5−E13.5). It is possible that BASCs already form at this time. These cells capable of self-renewal can differentiate into club cells and AT2 and perhaps AT1. (B) Schematic of a lung bud epithelium consisting of AT2 and AT1 progenitors at the distal tip, and bronchiolar progenitors in the proximal airway. If present at this early stage, BASCs likely exist at the putative bronchioalveolar-duct junction which lies between distal and proximal epithelium. Fgf10 signaling is required for the proper differentiation of epithelial cells along the distal-proximal axis, where higher concentrations of Fgf10 maintains the distal pool of AT2 progenitors, which are positive for Sox9 and Sftpc, and negative for Sox2 and Hopx. As Fgf10 concentration decreases proximally, cells adopt a bronchiolar signature, and become positive for Sox2 and negative for Sox9.
